A Closer Look at Pacs Messages: The Foundation of Payment Processing

In the fast-paced world of finance, effective communication between financial institutions is critical. Our previous discussion introduced the broader concepts of ISO 20022 and SWIFT MT messages, the universal standards that underpin global financial transactions. Now, let’s delve deeper into one of the core components of ISO 20022: pacs messages.

Understanding pacs Messages

pacs, short for Payments Clearing and Settlement, are a set of messages within the ISO 20022 standard designed specifically for facilitating payments between banks and their customers. These messages are vital to the seamless execution of payment-related communications between financial institutions, covering everything from initiating payments to updating their status or managing returns.

By using these standardized messages, banks can process transactions more efficiently and with fewer errors, ensuring that money moves where it needs to go with minimal friction.

The Structure of pacs Messages

At their core, pacs messages are XML-based and follow a structured format defined by ISO 20022. The format ensures that all necessary information is communicated clearly and consistently between banks.

The Basic Structure of a Pacs Message:

Message Header:

• Message ID: A unique identifier for the message.
• Creation Date and Time: When the message was created.
• Initiating Party: The entity that’s sending the message (e.g., a bank).

Transaction Information:

• Payment Details: Amount, currency, and execution date.
• Debtor (Payer) Details: Who’s sending the money.
• Creditor (Payee) Details: Who’s receiving the money.
• Remittance Information: Extra details like invoice numbers or references.

Supplementary Data:

• Reason Codes: Standardized explanations for the message or any issues.
• Regulatory Reporting: Information required for compliance purposes.

Each pacs message type builds on this basic structure, tailoring it to its specific role. Let’s take a closer look at each one.

pacs.002: FI-to-FI Payment Status Report

Purpose: pacs.002 is like a status update for a payment. When a bank sends a payment instruction using another pacs message (like pacs.008 or pacs.009), the receiving bank might send back a pacs.002 to let the sender know if the payment was successful, rejected, or still in process.

When You’d Use It:

• Payment Acknowledgment: The receiving bank confirms it got the payment instruction and is working on it.
• Error Reporting: If there’s a problem — say, incorrect account details — pacs.002 explains what went wrong.

Message Format: An example of what a pacs.002 message might look like:

<Document>
    <FIToFIPmtStsRpt>
        <GrpHdr>
            <MsgId>ABC12345</MsgId>
            <CreDtTm>2024-08-17T12:30:00</CreDtTm>
            <InstgAgt>
                <FinInstnId>
                    <BIC>ABCDUS33</BIC>
                </FinInstnId>
            </InstgAgt>
        </GrpHdr>
        <OrgnlGrpInfAndSts>
            <OrgnlMsgId>XYZ67890</OrgnlMsgId>
            <OrgnlMsgNmId>pacs.008.001.08</OrgnlMsgNmId>
            <GrpSts>ACCP</GrpSts>
        </OrgnlGrpInfAndSts>
    </FIToFIPmtStsRpt>
</Document>

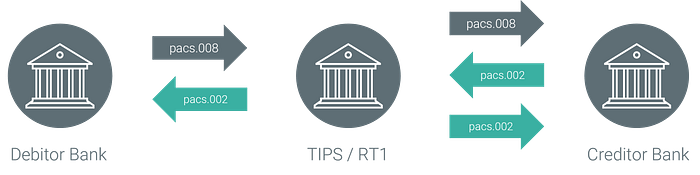

Real-World Example: Suppose Bank A sends a payment to Bank B using a pacs.008 message. Bank B processes the payment and sends back a pacs.002 message to confirm that the payment was successfully credited to the recipient’s account. If there were any issues, Bank B would use pacs.002 to inform Bank A of the problem, such as an incorrect account number.

pacs.004: Payment Return

Purpose: Sometimes things don’t go as planned, and a payment can’t be processed. pacs.004 is used to return a payment that was originally sent using another pacs message. The return occurs when the payment cannot be completed as instructed, requiring the funds to be sent back to the originator.

When You’d Use It:

• Unsuccessful Payment: The recipient’s account might be closed, there could be incorrect account details, or there could be another issue that prevents the payment from going through.
• Regulatory Reasons: Sometimes payments need to be returned because of compliance issues.

Message Format: A pacs.004 message might look like:

<Document>
    <PmtRtr>
        <GrpHdr>
            <MsgId>RET98765</MsgId>
            <CreDtTm>2024-08-17T13:00:00</CreDtTm>
            <InstgAgt>
                <FinInstnId>
                    <BIC>WXYZGB2L</BIC>
                </FinInstnId>
            </InstgAgt>
        </GrpHdr>
        <OrgnlGrpInf>
            <OrgnlMsgId>PAY123456</OrgnlMsgId>
        </OrgnlGrpInf>
        <TxInf>
            <OrgnlTxId>TX789123</OrgnlTxId>
            <RtrdIntrBkSttlmAmt Ccy="USD">1000.00</RtrdIntrBkSttlmAmt>
            <RtrRsnInf>
                <Rsn>
                    <Cd>AC04</Cd>
                    <Prtry>Closed Account</Prtry>
                </Rsn>
            </RtrRsnInf>
        </TxInf>
    </PmtRtr>
</Document>

Real-World Example: Imagine a payment is sent to an account that’s no longer active. The receiving bank would use pacs.004 to return the funds to the sender, explaining that the account was closed.

pacs.007: FI-to-FI Payment Reversal

Purpose: If a payment was sent in error, maybe the wrong amount or wrong account—pacs.007 is used to reverse it. This message is typically initiated by the bank that originally sent the payment, often due to errors in payment details.

When You’d Use It:

• Error Correction: Fix a mistake, like sending the wrong amount, incorrect account information, or even duplicate payments
• Fraud Prevention: If fraud is suspected, reversing the payment quickly can prevent loss.

Message Format: A pacs.007 message might look like this:

<Document>
    <FIToFIPmtRvsl>
        <GrpHdr>
            <MsgId>REV12345</MsgId>
            <CreDtTm>2024-08-17T14:00:00</CreDtTm>
            <InstgAgt>
                <FinInstnId>
                    <BIC>XYZLGB2L</BIC>
                </FinInstnId>
            </InstgAgt>
        </GrpHdr>
        <OrgnlGrpInf>
            <OrgnlMsgId>PAY654321</OrgnlMsgId>
        </OrgnlGrpInf>
        <TxInf>
            <OrgnlTxId>TX456789</OrgnlTxId>
            <RvslRsnInf>
                <Rsn>
                    <Cd>AC06</Cd>
                    <Prtry>Duplicate Payment</Prtry>
                </Rsn>
            </RvslRsnInf>
        </TxInf>
    </FIToFIPmtRvsl>
</Document>

Real-World Example: If a bank realizes it sent a duplicate payment, it can send a pacs.007 message to reverse the extra transaction.

pacs.008: FI-to-FI Customer Credit Transfer

Purpose: pacs.008 is the go-to message for transferring money between customer accounts at different banks. This message type facilitates the movement of funds from a customer’s account at one bank to a recipient’s account at another bank.

When You’d Use It:

• Domestic and International Transfers: Whether it’s a local or cross-border transfer, pacs.008 handles it.
• Single or Bulk Payments: It works for one-off payments or larger batches, like payroll.

Message Format: An example of a pacs.008 message might look like:

<Document>
    <FIToFICstmrCdtTrf>
        <GrpHdr>
            <MsgId>CRT12345</MsgId>
            <CreDtTm>2024-08-17T15:00:00</CreDtTm>
            <InstgAgt>
                <FinInstnId>
                    <BIC>ABCDUS33</BIC>
                </FinInstnId>
            </InstgAgt>
            <InstdAgt>
                <FinInstnId>
                    <BIC>XYZLGB2L</BIC>
                </FinInstnId>
            </InstdAgt>
        </GrpHdr>
        <CdtTrfTxInf>
            <PmtId>
                <InstrId>1234567890</InstrId>
                <EndToEndId>END1234567890</EndToEndId>
            </PmtId>
            <IntrBkSttlmAmt Ccy="USD">5000.00</IntrBkSttlmAmt>
            <ChrgBr>SLEV</ChrgBr>
            <Dbtr>
                <Nm>John Doe</Nm>
                <PstlAdr>
                    <Ctry>US</Ctry>
                </PstlAdr>
                <Id>
                    <OrgId>
                        <BICOrBEI>ABCDUS33</BICOrBEI>
                    </OrgId>
                </Id>
            </Dbtr>
            <DbtrAcct>
                <Id>
                    <IBAN>US12345678901234567890</IBAN>
                </Id>
            </DbtrAcct>
            <Cdtr>
                <Nm>Jane Smith</Nm>
                <PstlAdr>
                    <Ctry>GB</Ctry>
                </PstlAdr>
                <Id>
                    <OrgId>
                        <BICOrBEI>XYZLGB2L</BICOrBEI>
                    </OrgId>
                </Id>
            </Cdtr>
            <CdtrAcct>
                <Id>
                    <IBAN>GB09876543210987654321</IBAN>
                </Id>
            </CdtrAcct>
            <RmtInf>
                <Ustrd>Invoice 12345 Payment</Ustrd>
            </RmtInf>
        </CdtTrfTxInf>
    </FIToFICstmrCdtTrf>
</Document>

Real-World Example:

A customer in the United States wants to pay a supplier in the United Kingdom. The U.S. bank sends a pacs.008 message to the supplier’s bank in the UK, ensuring that the funds are credited to the correct account, and including a reference to the invoice being paid.

pacs.009: Financial Institution Credit Transfer

Purpose: pacs.009 is used for the movement of funds between financial institutions, primarily for high-value payments. This message type is typically used in interbank payments, where one bank transfers funds to another, often for large corporate transactions or cross-border payments.

When You’d Use It:

• Interbank Transfers: When one bank needs to transfer funds to another bank, such as settling obligations or transferring funds on behalf of a corporate client.
• High-Value Payments: For transactions involving significant amounts of money, particularly in cross-border or wholesale banking contexts.

Message Format:

An example of pacs.009 message might look like this:

<Document>
    <FIToFICdtTrf>
        <GrpHdr>
            <MsgId>B2B12345</MsgId>
            <CreDtTm>2024-08-17T16:00:00</CreDtTm>
            <InstgAgt>
                <FinInstnId>
                    <BIC>EFGHUS44</BIC>
                </FinInstnId>
            </InstgAgt>
            <InstdAgt>
                <FinInstnId>
                    <BIC>LMNOPQ55</BIC>
                </FinInstnId>
            </InstdAgt>
        </GrpHdr>
        <CdtTrfTxInf>
            <PmtId>
                <InstrId>789123456</InstrId>
                <EndToEndId>B2BEND123456</EndToEndId>
            </PmtId>
            <IntrBkSttlmAmt Ccy="EUR">100000.00</IntrBkSttlmAmt>
            <ChrgBr>SHAR</ChrgBr>
            <Dbtr>
                <Nm>XYZ Corporation</Nm>
                <PstlAdr>
                    <Ctry>DE</Ctry>
                </PstlAdr>
            </Dbtr>
            <DbtrAcct>
                <Id>
                    <IBAN>DE89370400440532013000</IBAN>
                </Id>
            </DbtrAcct>
            <Cdtr>
                <Nm>ABC Industries</Nm>
                <PstlAdr>
                    <Ctry>FR</Ctry>
                </PstlAdr>
            </Cdtr>
            <CdtrAcct>
                <Id>
                    <IBAN>FR7630006000011234567890189</IBAN>
                </Id>
            </CdtrAcct>
            <RmtInf>
                <Ustrd>Settlement for Q2 Deliveries</Ustrd>
            </RmtInf>
        </CdtTrfTxInf>
    </FIToFICdtTrf>
</Document>

Real-World Example:

A multinational corporation based in Germany needs to transfer a large sum to a supplier in France. The corporation’s bank sends a pacs.009 message to the supplier’s bank, specifying the settlement amount and remittance information to ensure that the payment is properly accounted for.

pacs.010: FI-to-FI Direct Debit

Purpose: pacs.010 is used to initiate a direct debit, where funds are pulled from the debtor’s account and credited to the creditor’s account at another financial institution. This is typically used for recurring payments, such as utility bills, loan repayments, or subscription services.

When You’d Use It:

• Recurring Payments: For regular debits from a customer’s account, such as monthly utility bills or loan repayments.
• Pre-authorized Debits: When a customer has authorized a creditor to automatically debit their account.

Message Format:

A pacs.010 message might look like this:

<Document>
    <FIToFIDrctDbt>
        <GrpHdr>
            <MsgId>DD12345</MsgId>
            <CreDtTm>2024-08-17T17:00:00</CreDtTm>
            <InstgAgt>
                <FinInstnId>
                    <BIC>XYZLGB2L</BIC>
                </FinInstnId>
            </InstgAgt>
        </GrpHdr>
        <DrctDbtTxInf>
            <PmtId>
                <InstrId>DD789123</InstrId>
                <EndToEndId>DDEND123456</EndToEndId>
            </PmtId>
            <InstdAmt Ccy="GBP">250.00</InstdAmt>
            <Dbtr>
                <Nm>John Doe</Nm>
                <PstlAdr>
                    <Ctry>GB</Ctry>
                </PstlAdr>
            </Dbtr>
            <DbtrAcct>
                <Id>
                    <IBAN>GB29NWBK60161331926819</IBAN>
                </Id>
            </DbtrAcct>
            <Cdtr>
                <Nm>Utility Company</Nm>
                <PstlAdr>
                    <Ctry>GB</Ctry>
                </PstlAdr>
            </Cdtr>
            <CdtrAcct>
                <Id>
                    <IBAN>GB12BARC20201530093459</IBAN>
                </Id>
            </CdtrAcct>
            <RmtInf>
                <Ustrd>Monthly Utility Bill</Ustrd>
            </RmtInf>
        </DrctDbtTxInf>
    </FIToFIDrctDbt>
</Document>

Real-World Example:

A customer has set up a direct debit for their monthly utility bill. Each month, the utility company’s bank sends a pacs.010 message to the customer’s bank, instructing it to debit the specified amount from the customer’s account and credit it to the utility company’s account.

pacs.028: FI-to-FI Payment Cancellation Request

Purpose: pacs.028 is used to request the cancellation of a payment that has been initiated but not yet completed. This message type allows a financial institution to cancel a payment instruction sent using pacs.008 or pacs.009 before it is finalized.

When You’d Use It:

• Error Correction: If an error is discovered after a payment is initiated but before it’s completed, a pacs.028 message can be used to cancel the payment.
• Prevention of Fraud: If a payment is suspected of being fraudulent, it can be cancelled before it’s processed.

Message Format:

A pacs.028 message might look like this:

<Document>
    <FIToFIPmtCxlReq>
        <GrpHdr>
            <MsgId>CXL12345</MsgId>
            <CreDtTm>2024-08-17T18:00:00</CreDtTm>
            <InstgAgt>
                <FinInstnId>
                    <BIC>EFGHUS44</BIC>
                </FinInstnId>
            </InstgAgt>
        </GrpHdr>
        <OrgnlGrpInf>
            <OrgnlMsgId>PAYCXL789123</OrgnlMsgId>
        </OrgnlGrpInf>
        <CxlRsnInf>
            <Rsn>
                <Cd>BE08</Cd>
                <Prtry>Duplicate Payment</Prtry>
            </Rsn>
        </CxlRsnInf>
    </FIToFIPmtCxlReq>
</Document>

Real-World Example:

Suppose a bank discovers that it accidentally initiated a duplicate payment. Before the payment is completed, the bank can send a pacs.028 message to the receiving bank, requesting the cancellation of the payment. This ensures that the funds are not transferred twice, preventing potential issues for both the sender and the receiver.

Summary of pacs Messages

The pacs messages within the ISO 20022 standard serve distinct roles in financial messaging, each facilitating a different aspect of payment processing between financial institutions. Here’s a quick recap:

• pacs.002: Reporting the status of a payment instruction, ensuring transparency in transaction processing.
• pacs.004: Handling the return of payments that cannot be processed, helping to resolve issues like incorrect account details.
• pacs.007: Reversing payments that have been processed in error, such as duplicate or incorrect transactions.
• pacs.008: Facilitating customer-initiated credit transfers, enabling payments between customer accounts at different banks.
• pacs.009: Managing interbank credit transfers, often used for large-value corporate or wholesale banking transactions.
• pacs.010: Initiating direct debit transactions, commonly used for recurring payments like utilities or loan repayments.
• pacs.028: Requesting the cancellation of payments that have not yet been processed, preventing erroneous transactions from being completed.

Beyond pacs: Other Key Messages in ISO 20022

While pacs messages are central to payment processing, ISO 20022 encompasses a broader range of messages that support various other financial operations. These messages are designed to standardize communication across different types of transactions, ensuring that every aspect of financial messaging is handled efficiently and consistently.

1. camt (Cash Management) Messages

camt messages are used for cash management, helping banks and financial institutions monitor and manage account balances, liquidity, and transaction statuses. These messages include:

• camt.052: Bank-to-Customer Account Report, providing an overview of account activity.
• camt.053: Bank-to-Customer Statement, detailing specific transactions and balances.
• camt.054: Bank-to-Customer Debit/Credit Notification, notifying about specific credits or debits.

2. pain (Payments Initiation) Messages

Pain messages are focused on the initiation of payments, allowing customers to send payment instructions to their banks. These messages include:

• pain.001: Customer Credit Transfer Initiation, used by customers to instruct their bank to transfer funds.
• pain.002: Customer Payment Status Report, providing status updates on payments initiated by the customer.
• pain.008: Customer Direct Debit Initiation, used to instruct a bank to collect funds from a customer’s account.

4. sec (Securities) Messages

sec messages support securities transactions, including the buying, selling, and transfer of stocks, bonds, and other financial instruments. These messages help streamline processes like securities settlements and custody services, ensuring that transactions are processed efficiently and securely.

5. acmt (Account Management) Messages

acmt messages are used for the management of accounts, including account openings, closures, and updates. These messages ensure that all necessary information is accurately communicated between financial institutions and customers when managing account-related activities.

Conclusion

The ISO 20022 Pacs messages are fundamental to the operation of the global financial system, ensuring that payments are processed accurately, efficiently, and transparently. Understanding these messages and their formats is crucial for anyone involved in financial operations, as they form the backbone of modern payment systems.

As financial systems continue to evolve, the adoption of ISO 20022 and its associated message types, such as Pacs, will remain central to maintaining the integrity and efficiency of financial communications.

What’s Next? Exploring SWIFT MT Messages

As we’ve seen, ISO 20022 Pacs messages are crucial for smooth and efficient financial communication. But they’re just one piece of the puzzle. Another key player in the world of global finance is the SWIFT MT (Message Type) series, which has been the backbone of international banking for years.

Whether you’re dealing with cross-border payments, managing corporate finances, or working in a financial institution, understanding SWIFT MT messages is essential. These messages, like the MT101 for payment instructions and MT103 for international transfers, are vital tools for ensuring that funds move securely and accurately between banks across the globe.

In our next article, we’ll dive into the world of SWIFT MT messages. We’ll break down the most commonly used message types, explain their structure and purpose, and show how they play a critical role in international transactions. If you’re looking to deepen your knowledge of global financial operations, you won’t want to miss it.

Keep an eye out for our upcoming article, where we’ll continue our exploration of the messaging systems that keep the world’s financial engine running.
